MCI Electronics Relay Shield

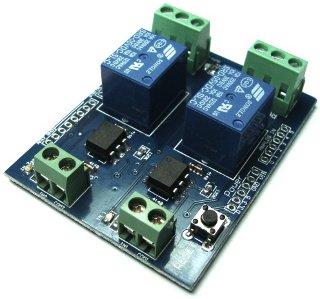

Photo: MCI Electronics

Shield URL: Relay Shield
Tags: relay, output, control
Maker: MCI Electronics

Enables the Arduino board to turn on/off devices such as TVs, audio systems, lights and other electrical devices up to 10A/220VAC or 10A/30VDC. Suitable for home/office automation, or controlling other installed equipment.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic is provided, but no other design files are available

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
