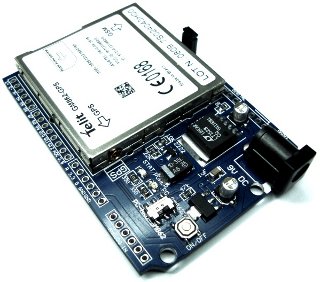

MCI Electronics GM862 Cellular Modem Shield


Photo credits: unknown

Shield URL: GM862 Cellular Modem Shield
Tags: gsm, gps, sms, phone, gprs
Maker: MCI Electronics

Supports either the GM862 or GM862-GPS quad-band cellular modem module. Allows the Arduino to make phone calls, send SMS text messages, and send data via GPRS.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic is provided but there is no license specified and no PCB source files.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses also the reset line.
