Mayhew Labs Mux Shield 2

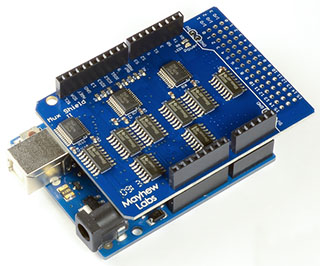

Photo: Mayhew Labs

Shield URL: Mux Shield 2
Tags:
Maker: Mayhew Labs

Adds up to 48 inputs or outputs. Using a combination of multiplexers, shift registers, and control signals you can select whether pins are analog inputs, digital inputs, or digital outputs, making it possible to have 48 analog/digital inputs or digital outputs in many configurations.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic provided as PDF. No source files or PCB layout.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
