Max Pierson DMX-512 I/O Shield

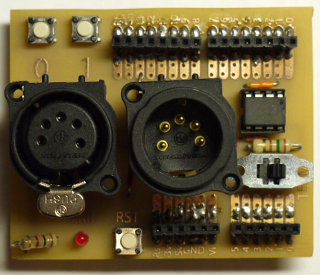

Photo: Max Pierson

Shield URL: DMX-512 I/O Shield
Tags: dmx, control, lighting
Maker: Max Pierson

Shield with connectors to send and receive DMX512 signals for stage lighting control.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
