Low Voltage Labs Video Overlay Shield

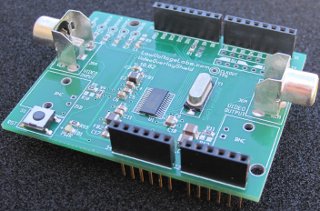

Photo: Eric Thompson

Shield URL: Video Overlay Shield
Tags: video, output, display
Maker: Low Voltage Labs

The Arduino compatible shield board overlays text on analog video, using the Maxim MAX7456 on-screen display chip. This board allows easy overlay of text onto an analog video signal, NTSC or PAL.

Creative Commons Attribution-Noncommercial-Share Alike 3.0 United States License.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
