Libelium Radiation Sensor Shield

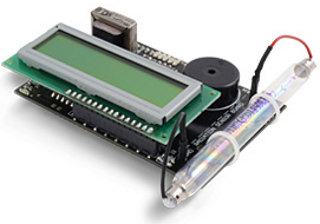

Photo: Libelium

Shield URL: Radiation Sensor Shield
Tags: geiger, radiation, sensor, input
Maker: Libelium

Geiger-Muller tube interface to make an Arduino-based Geiger counter. Includes audible and visual output.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
