Libelium MicroSD Shield


Photo credits: unknown

Shield URL: MicroSD Shield
Tags:
Maker: Libelium

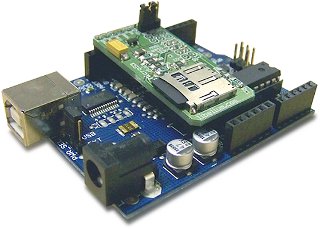

The MicroSD Shield lets you easily add SD flash memory to Arduino. With this module you can store a large amount of information: 2GB or more is typical.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
The SD card is connected via SPI. The analog pins, digital pins D0-D7, and UART are available. The module can be connected to Arduino in two places:
Option 1: Digital pins D8-D13
Option 2: ICSP connector
