Knutsel CC2500 Shield

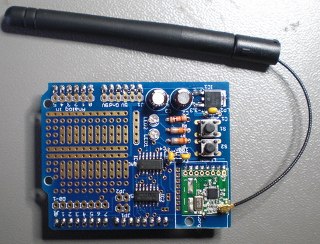

Photo by Ivo Noorhoff

Shield URL: CC2500 Shield
Tags:
Maker: Knutsel

The CC2500 shield is a Arduino shield that connects a CC2500 to the Arduino and can control a Philips Livingcolors Gen 1 Lamp. The shield provides active level shifting between the 3.3V logic levels of the CC2500 and the 5V logic levels of the Arduino.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
MISO is tri stated when SS is inactive.
