Jimmie Rodgers LoL LED Matrix Shield


Photo credits: unknown

Shield URL: LoL LED Matrix Shield
Tags: led, display
Maker: Jimmie Rodgers

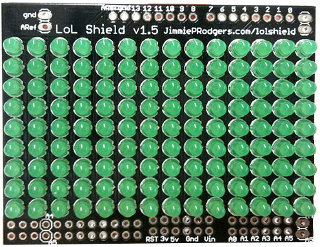

The LoL Shield is a charlieplexed LED matrix for the Arduino. The LEDs are individually addressable, so you can use it to display anything in a 9x14 grid. Scroll text, play games, display images, or anything else you want to do.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Per-LED activation table is available at:
http://spreadsheets.google.com/pub?key=t_EOF_AD...
