ITead Studio IBridge 4x4 Keypad Shield

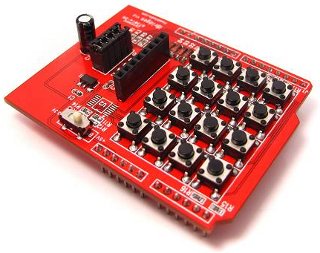

Photo: ITead Studio

Shield URL: IBridge 4x4 Keypad Shield
Tags: button, input, display, lcd
Maker: ITead Studio

IBridge is a 4X4 key-pad shield with a 5110 Graphic LCD interface.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
