ITead Studio Colors Shield v1.1

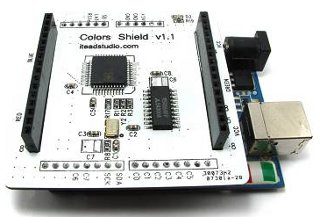

Photo: ITead Studio

Shield URL: Colors Shield v1.1
Tags: led, output, display
Maker: ITead Studio

The Colors shield drives an RGB LED matrix using an LED driver chip that incorporates shift registers, data latches, constant current outputs and 64 x 256 gray level PWM for per color. Each channel can provide a maximum current of 60 mA.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic is provided as a PDF, but there is no license listed or design files available.
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
I am not convinced the pin usage data is correct. Corrections welcome.
