Homeroasters TC4 Shield

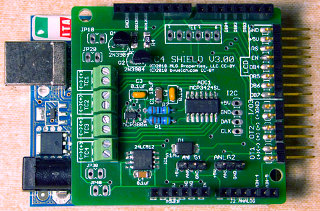

Photo: Homeroasters

Shield URL: TC4 Shield
Tags: thermocouple, temperature, sensor
Maker: Homeroasters

Supports multiple thermocouples for roast temperature monitoring and control.

Open Source: Yes, OSHW-compliant
License: BSD
Source: code.google.com/p/tc4-shield/source/b...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
I2C Clock
I2C Data
