GinSing GinSing Shield

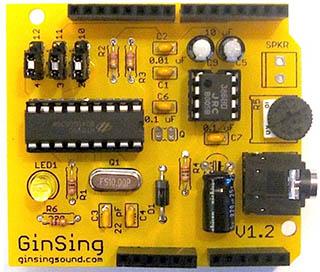

Photo: GinSing

Shield URL: GinSing Shield
Tags: speach, sound
Maker: GinSing

Sound and voice synthesizer based on the Savage Innovations SSGO1 chip, which is a complex waveform synthesizer capable of voice synthesis, polyphonic voicing, and a configurable waveform synthesizer with complex modulation, envelope, mixer control and more.

Features:

  • Synthesizer circuit - Babblebot IC, clock, PWM filter.
  • Amplifier circuit - NJM386 1 watt audio amplifier and noise stabilization.
  • 3.5mm audio jack - for headphone and line level output.
  • Sounding LED - indicator when sound is being produced.
  • Volume control - gain control for audio amplifier.
  • Configuration jumpers - selectable Arduino pin assignments.
  • Hi power feed - use up to 18V via external Arduino power jack.
  • Board headers - full length through-connects for shield stacking.
  • Speaker pad - to connect external 8-32 ohm speaker.
  • Q pad - software controllable digital output.

Open Source: No, not OSHW-compliant
License: CC BY-NC-SA 3.0
Source: www.ginsingsound.com/download/categor...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Serial interface can be jumpered to use either:
D2/3/4, OR
D10/11/12
