Galileo 7 Talk Shield

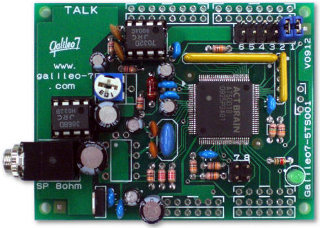

Photo: Galileo 7

Shield URL: Talk Shield
Tags: speech, sound, audio
Maker: Galileo 7

Japanese speech synthesizer

LSI: Micro Talk ATS001B (Act Brain)

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
