Galileo 7 4 Digits Shield

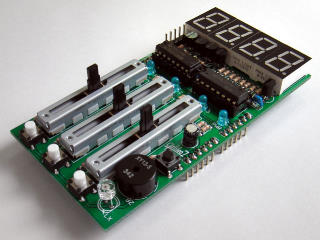

Photo: Galileo 7

Shield URL: 4 Digits Shield
Tags: input, output, led, display, temperature, light
Maker: Galileo 7

A combination of input and output devices useful for a variety of projects:

  • 3 x slider inputs.
  • 3 x button inputs.
  • 4-digit, 7-segment LED display.
  • Temperature sensor.
  • Light sensor.
  • Buzzer.

Open Source: Unknown
License: Unknown
Source: Unknown
