Futura Elettronica I/O Shield

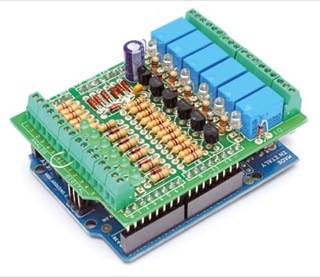

Photo: Open Electronics

Shield URL: I/O Shield
Tags: relay
Maker: Futura Elettronica

6 onboard relays, 6 digital inputs and 6 analog inputs. The digital inputs and relay outputs are equipped with an LED that indicates the status.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
