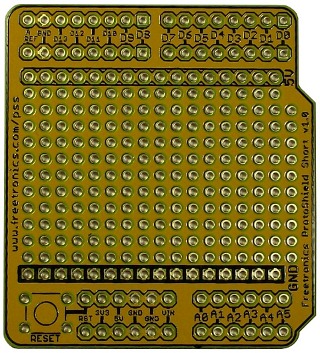

Freetronics ProtoShield Short


Photo: Jonathan Oxer

Shield URL: ProtoShield Short
Tags: prototyping
Maker: Freetronics

A simple prototyping shield specifically designed to be short enough to clear the RJ45 jack on an Ethernet shield.

Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
Source: https://github.com/freetronics/ProtoS...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
