FlamingoEDA IDC-6/SPI Shield

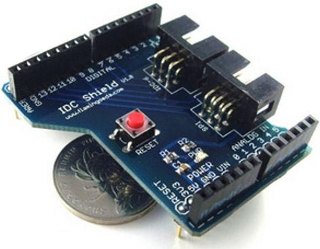

Photo: FlamingoEDA

Shield URL: IDC-6/SPI Shield
Tags:
Maker: FlamingoEDA

Includes a 6 socket-IDC and a SPI socket, and can be used to connect electronic bricks which have IDC6 or SPI interfaces.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pins are specifically reserved by the shield: all are broken out to connectors, and which pins are used depends on what is connected.
