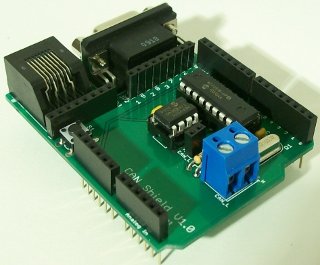

Faz Jaxton CANShield


Photo credits: unknown

Shield URL: CANShield
Tags: can, communication
Maker: Faz Jaxton

This shield can be used to interface to existing CAN networks or used to network two or more Arduinos together using phone cable, Cat-5, or any other kind of wire.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: www.fazjaxton.net/products/canshield/...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
