Evil Mad Science Googly Eyes Shield

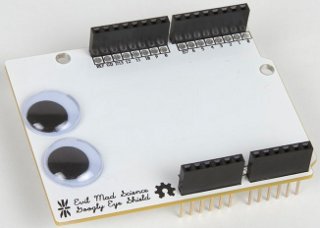

Photo: Evil Mad Science LLC

Shield URL: Googly Eyes Shield
Tags:
Maker: Evil Mad Science

The shield provides a simple platform with labeled break-out points from every position on the edge connectors with room to fit a little battery pack, a relay, a breadboard, or whatever else you need to mount in your stack. Plus, googly eyes!

Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
Source: wiki.evilmadscience.com/Googly_Shield

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
The shield itself does not use any pins. It uses stackable headers and includes breakout holes next to the edge connectors.
