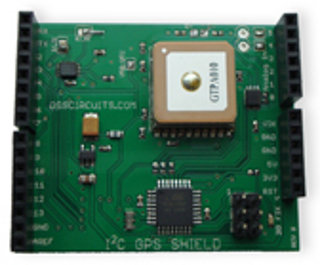

DSS Circuits I2C GPS Shield


Photo credits: unknown

Shield URL: I2C GPS Shield
Tags: GPS
Maker: DSS Circuits

Access most of the commonly used GPS data using the I2C protocol. Features a 66 channel 10 Hz GPS receiver with an ultra low -165dBm sensitivity

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pins D0-D3 and D7-D10 are optional usage pins for serial communication and/or interrupts which can be activated via software. By default these pins are in a high impedance state and will not interfere with other signals on the same pins.
