DFRobot Xbee Shield

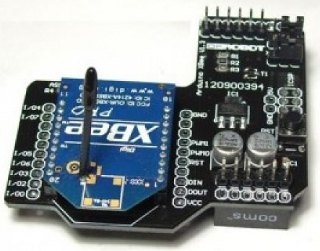

Photo: DF Robot

Shield URL: Xbee Shield
Tags: xbee, communications
Maker: DFRobot

The Xbee shield allows an Arduino board to communicate wirelessly using Zigbee. It is based on the Xbee module from MaxStream, and is compatible with several Xbee models:

  • Xbee 1mw
  • Xbee Pro
  • Xbee 2.5 series

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
There appear to be some configuration jumpers that swap the roles of the TX/RX pins, but the documentation is very poor so I don't know what they are supposed to do.
