DFRobot Prototyping Shield

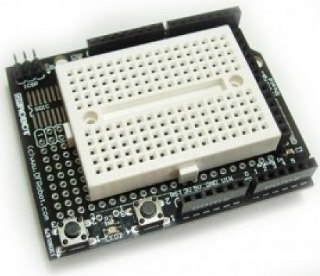

Photo: DF Robot

Shield URL: Prototyping Shield
Tags: prototyping
Maker: DFRobot

General-purpose prototyping shield.

Features:

  • Reset button.
  • ICSP header.
  • GND and +5V rails.
  • DIP prototyping area.
  • SOIC prototyping area above USB jack for up to 14-pin SOIC chip, narrow medium or wide package.
  • Momentary-action button.

Open Source: Unknown
License: Unknown
Source: Unknown
License Note: The description on the Maker's page claims this is "open-source", but there are no PCB design files published and the schematic does not include a license. The design appears to be a direct rip-off of the Adafruit Proto Shield, without attribution and with a false Copyright claim.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D2: LED
D3: LED
D11: Momentary switch
