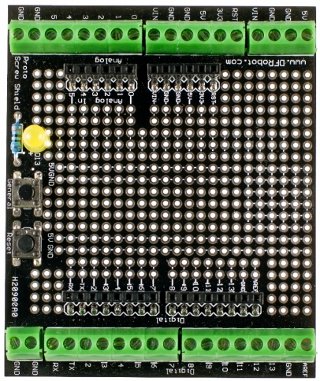

DFRobot Proto Screw Shield


Photo credits: unknown

Shield URL: Proto Screw Shield
Tags: terminal, connection, prototyping
Maker: DFRobot

Combines the screw shield and prototyping shield.

The screw terminals provide a convenient way to easily connect wires to your project.

The prototyping area provides space for you to add your own parts, plus a LED (D13) and two buttons (reset and general).

Open Source: Unknown
License: Unknown
Source: Unknown
