DFRobot Interface Shield

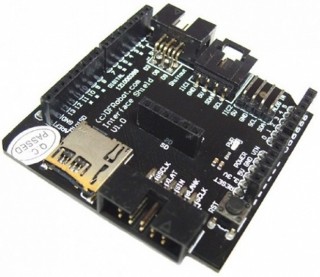

Photo: DFRobot

Shield URL: Interface Shield
Tags: spi, i2c, sd, flash
Maker: DFRobot

This shield supports multiple interfaces:

  • SPI interface (directly connected Shiftout module, SPI LCD display module, SPI LED display module)
  • IIC Interface (direct connects IIC lCD display module, IIC transfer IO module)
  • Micro SD card interface (Micro SD card can be directly inserted)
  • SD card storage module interface.
  • TLC full-color LED controller module.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Shiftout: D3, D8, D9
TLC: D3, D9, D10, D11, D13
SD: D10, D11, D12, D13
I2C: A4, A5
