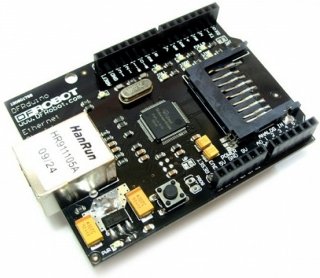

DFRobot Ethernet Shield


Photo: DFRobot

Shield URL: Ethernet Shield
Tags: ethernet, network
Maker: DFRobot

The Arduino Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip.

The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield. The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.

Open Source: Unknown
License: Unknown
Source: Unknown
License Note: It looks like this shield is derived from the official Ethernet Shield (v4.0) design with some minor tweaks, so legally it is required to be under the CC-BY-SA 2.5 license with credit given to the original design. However, I could not find the design files, license info, or credit.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
