Dexter Industries GPS Shield


Photo credits: unknown

Shield URL: GPS Shield
Tags: gps
Maker: Dexter Industries

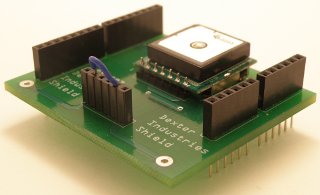

The GPS Shield is powered by the SUP500F Receiver from Skytraq. The receiver is a 65 channel, 10 Hz Receiver with a smart antenna built in. This all-in-one GPS receiver does not require any antennae. Serial interface is via 3V LVTTL.

It has pinning options for SRAM battery and jumpers.

This is an all-in-one GPS: does not require antenna.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
This shield uses D3 and D4 for serial communications with the Arduino to stay out of the way of the computer serial lines, making debugging easier.
