Critical Velocity Terminal Block Shield

Photo credits: unknown

Shield URL: Terminal Block Shield
Tags: breakout
Maker: Critical Velocity

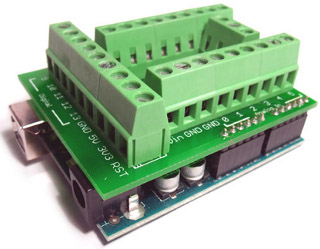

Breaks out each pin into its own high quality rising-clamp terminal block connector for easy hookup to external devices. 30 terminal connections in total.

Open Source: Unknown
License: Unknown
Source: Unknown


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
All pins brought out to terminal block connectors.
