Critical Velocity LCD Shield

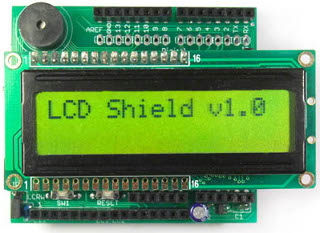

Photo: Critical Velocity

Shield URL: LCD Shield
Tags: prototyping, lcd, display, sound, button
Maker: Critical Velocity

Integrates two 16 pin headers for use with Hitachi HD44780 compatible LCDs. Connections to a small speaker and push button are brought out to a header for easy prototyping.

Available as a kit including the components necessary to build the LCD shield, except for the LCD. Any Hitachi HD44780 compatible LCD can be used as long as the header pins are in a single row.

  • Prototyping space.
  • 16 Pin HD44780 compatible LCD Header (14 data + 2 backlight pins)
  • Upper and lower header for your choice of mouunting options.
  • Uses standard Arduino LCD Library in 4 bit mode
  • On-board speaker and pushbutton.
  • 8 and 6 pin shield extender headers.
  • Reset button.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
