Critical Velocity Accelerometer Shield

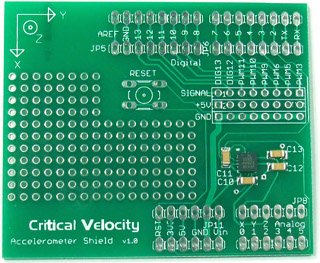

Photo: Critical Velocity

Shield URL: Accelerometer Shield
Tags:
Maker: Critical Velocity

Integrates an Analog Devices ADXL335 3-axis accelerometer into an Arduino compatible shield. 3 analog outputs for the X,Y and Z axes. +/3 g range per axis.

  • 3 Axis Acceleration, +/- 3g sensing range per channel.
  • 6 PWM Servo output headers.
  • Prototyping space.
  • 8 and 6 pin shield extender headers and regular headers included.
  • Reset button included.

Open Source: Unknown
License: Unknown
Source: Unknown

 I do not yet have verified pin usage data for this shield.
