Circuits At Home USB Host Shield

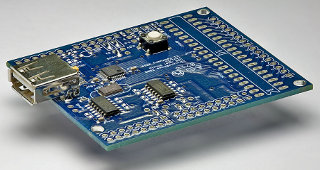

Photo by Circuits At Home

Shield URL: USB Host Shield
Tags:
Maker: Circuits At Home

This shield adds USB Host capabilities to the Arduino. Comes in four different configurations. Software support for new devices is constantly added; at the moment, code for USB keyboard and PS3 controller are ready with Bluetooth and digital cameras in the works.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
