Bliptronics XBee Shield Remixed

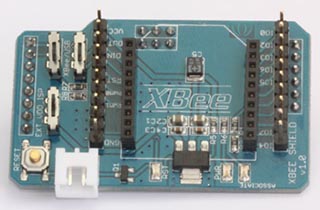

Photo: Bliptronics

Shield URL: XBee Shield Remixed
Tags: xbee
Maker: Bliptronics

XBee header, with standard Arduino pinouts
Bliptronics

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
