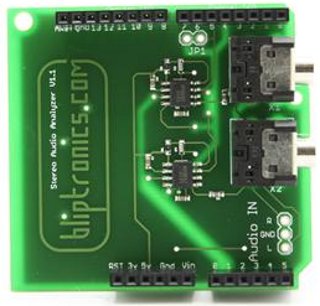

Bliptronics Spectrum Analyzer Shield

Shield URL: Spectrum Analyzer Shield
Tags: audio, input, sound
Maker: Bliptronics

You can make an Arduino perform certain actions depending on the types of audio it receives. Sound is broken down into seven frequency bands and the peak level for each band can be read. These levels can be displayed as a graphic equalizer, like you would see on an audio system or a car stereo. This task can be performed in software as a Fourier analysis, but this shield does it for you very quickly.

Open Source: Unknown
License: Unknown
Source: Unknown

Note:
A0: Left channel.
A1: Right channel.
D4: STROBE on shield.
D5: RESET on shield.
