Bhasha Technologies Xbee Shield

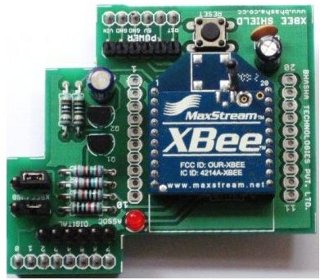

Photo: Bhasha Technologies

Shield URL: Xbee Shield
Tags: xbee, zigbee, communications
Maker: Bhasha Technologies

Zigbee shield.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Unlike most shields this one has the headers reversed: it has female headers on the shield, and expects male headers to be fitted to the Arduino. This shield therefore can't be used with a normal Arduino that has female headers.

Uses TX/RX pins for Zigbee connectivity.

The Maker claims it also uses pins D3-D7, but I can't find any explanation of why and there are no design files published. I've left them marked as used until I get clarification.
