Bhasha Technologies Seven Segment Relay Shield

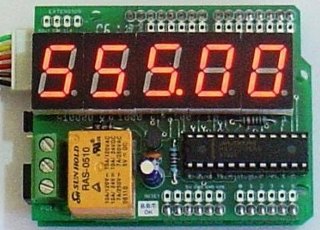

Photo: Bhasha Technologies

Shield URL: Seven Segment Relay Shield
Tags: display, relay, output, control
Maker: Bhasha Technologies

Combination of relay output and a 5-digit 7-segment display. Features:

5 RED 7 segment LED displays to display data up to 99999.
Uses simple SPI interface for connecting with Arduino.
Can be cascaded.

Relay connected to pin D2 operates at 5VDC capable of switching up to 7A/250VAC.

Note: this shield has female connectors on the bottom, the opposite of most Arduino shields, so it will not fit on a standard Arduino unmodified.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
