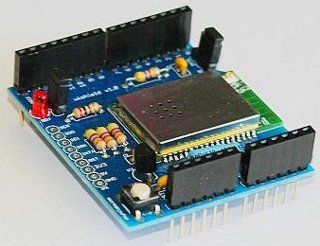

AsyncLabs WiShield v1.0


Photo: AsyncLabs

Shield URL: WiShield v1.0
Tags: wifi, network, communications
Maker: AsyncLabs

Adds WiFi networking support to Arduino.

  • 802.11b Wi-Fi certified.
  • 1Mbps and 2 Mbps throughput speeds.
  • Supports both infrastructure (BSS) and ad hoc (IBSS) wireless networks.
  • WEP, both 64-bit and 128-bit.
  • WPA/WPA2 (TKIP and AES) PSK.


Open Source: Yes, OSHW-compliant
License: CC BY-SA 2.5
Source: Unknown
License Note: The Asynclabs wiki says this shield is licensed as CC-BY-SA-2.5, but I couldn't find the source files anywhere.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D2 is used for an interrupt, but can be switched to D8 if required.
D9 used for a connection status LED but can still be used for other purposes.
