AsyncLabs FlashShield

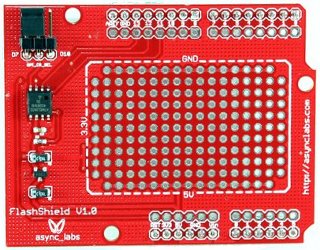

Photo: AsyncLabs

Shield URL: FlashShield
Tags: flash, storage
Maker: AsyncLabs

Provides an additional 16Mbit of serial flash store capability. Useful for storing sensor data or web page content to be served via an Ethernet or WiFi shield.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 2.5
Source: Unknown
License Note: The Asynclabs wiki says this shield is licensed as CC-BY-SA-2.5, but I couldn't find the source files anywhere.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
The SPI CS connection is selectable between D10 (the default CS pin for SPI on Arduino) and D7.
