Argent Data Systems Radio Shield


Photo credits: unknown

Shield URL: Radio Shield
Tags: radio, transmitter, receiver, lcd, display
Maker: Argent Data Systems

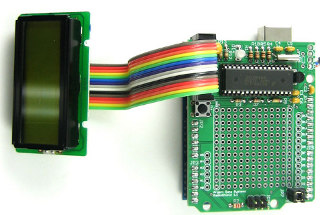

The Radio Shield provides AX.25 packet radio send and receive capability, a prototyping area, and an HD44780-compatible LCD interface.

Documentation is available at wiki.argentdata.com.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D1 and D0. It is a 4800bps serial device.
