Applied Platonics Analog Input Shield

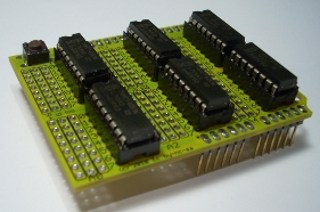

Photo: Applied Platonics

Shield URL: Analog Input Shield
Tags:
Maker: Applied Platonics

The Analog Input Shield gives you 48 analog inputs, with +5V and Ground next to every input pin.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses D2,D3,D4 to address MUXes on every analog input pin.
