Andre Concalves H-bridge


Photo credits: unknown

Shield URL: H-bridge
Tags: motor, control, output
Maker: Andre Concalves

The H-Bridge Shield can control large bi-directional DC motors.

  • Optocoupled circuit which isolates the motor power supply from the the Arduino.
  • External power input (5-12V)

Open Source: Unknown
License: Unknown
Source: www.andregoncalves.info/ag_blog/ag_co...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:

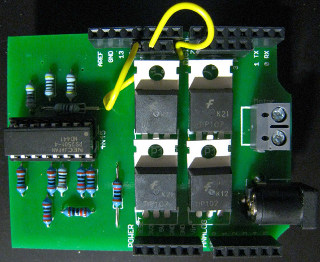

The photo shows connections to D10 and D11, but the shield allows use of any 2 PWM-capable outputs using jumper cables.
