Adafruit Industries 2.8" TFT Touch Shield


Photo credits: unknown

Shield URL: 2.8" TFT Touch Shield
Tags: lcd, display
Maker: Adafruit Industries

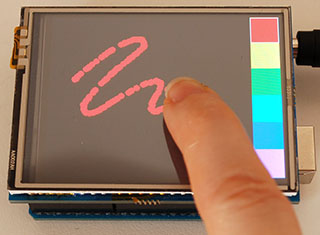

Touchscreen display shield with microSD card socket with 240x320 pixel resolution 2.8" diagonal TFT LCD. White LED backlight. 18-bit colour (262,000 different shades). Resistive touchscreen.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: https://github.com/adafruit/TFTshield
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pin 12 is available if not using the microSD

Did I make a mistake? Tell me!
