Adafruit Industries NFC/RFID Shield

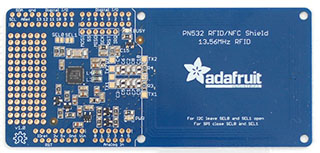

Image: Adafruit Industries

Shield URL: NFC/RFID Shield
Tags: rfid
Maker: Adafruit Industries

A useful shield for NFC and RFID communication

Open Source: Unknown
License: Unknown
Source: Unknown
License Note: Schematic is available as a PDF under CC BY-SA licence. No source files seem to be available.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses I2C by default. Can also use SPI.
