Nu Electronics 2.8" TFT Color LCD Touch Screen Shield

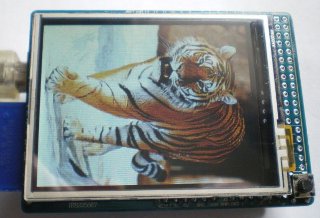

Photo: Nu Electronics

Shield URL: 2.8" TFT Color LCD Touch Screen Shield
Tags: lcd, display, touch, input
Maker: Nu Electronics

LCD screen with touchscreen interface. 2.8 inch TFT LCD, 320x240 resolution and 65K color.

Touch-screen Panel and on-board AD7843 compatible controller.

SD card interface in SPI mode, for external mass storage of photos and icons.

Arduino library and exmaples of graphic and font routines, touchscreen interface and calibration, and SD card (FAT filesystem) operation.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
