Nu Electronics 2.4" TFT Color LCD Touch Screen Shield

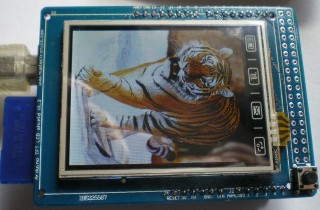

Photo: Nu Electronics

Shield URL: 2.4" TFT Color LCD Touch Screen Shield
Tags: lcd, display, touch, input
Maker: Nu Electronics

LCD screen with touchscreen interface.

  • 2.4 inch TFT LCD, 320x240 resolution and 65K color.
  • Touch-screen Panel and on-board AD7843 compatible controller.
  • SD card interface in SPI mode, for external mass storage of photos and icons.
  • Arduino library and exmaples of graphic and font routines, touchscreen interface and calibration, and SD card (FAT filesystem) operation.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Only A3, A4, and A5 available for other uses.
